Gear reduction ratio is 1:10 1:20 1:30 1:50 1:100 1:210 1:297 1:350
The customer can according to different use torque speed requirements to match the speed ratio, at the same time Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
Mechanical Dimension:MM
Specifications
GB16 Round metal gear box series
speed reducer performance parameters
| No. | Ratio | Step No. | Size | Torque | Torque | Noise |
| 1 | 3 | 2 | φ14*10 | 200g.cm | 600g.cm | <60db |
| 2 | 7 | 2 | φ14*10 | 200g.cm | 600g.cm | <60db |
| 3 | 10 | 2 | φ14*10 | 200g.cm | 600g.cm | <60db |
| 4 | 16 | 4 | φ14*10 | 300g.cm | 900g.cm | <60db |
| 5 | 17 | 4 | φ14*10 | 300g.cm | 900g.cm | <60db |
| 6 | 20 | 4 | φ14*10 | 300g.cm | 900g.cm | <60db |
| 7 | 30 | 4 | φ14*10 | 300g.cm | 900g.cm | <60db |
| 8 | 35 | 4 | φ14*10 | 300g.cm | 900g.cm | <60db |
| 9 | 50 | 4 | φ14*10 | 400g.cm | 1200g.cm | <60db |
| 10 | 63 | 4 | φ14*10 | 400g.cm | 1200g.cm | <60db |
| 11 | 70 | 4 | φ14*10 | 500g.cm | 1500g.cm | <60db |
| 12 | 86 | 4 | φ14*10 | 500g.cm | 1500g.cm | <60db |
| 13 | 115 | 5 | φ14*10 | 600g.cm | 1800g.cm | <50db |
| 14 | 150 | 5 | φ14*10 | 600g.cm | 1800g.cm | <50db |
| 15 | 210 | 5 | φ14*10 | 700g.cm | 2100g.cm | <50db |
| 16 | 250 | 5 | φ14*10 | 700g.cm | 2100g.cm | <50db |
| 17 | 360 | 5 | φ14*10 | 800g.cm | 2400g.cm | <50db |
Can be used with motor interface size
| Screw hole type | Screw hole nominal size | Screw hole pitch |
| Diagonal | M2.0 | 10mm |
Installation method: Pressing the motor gear on the motor shaft - the reducer is fixed on the motor
Operating temperature: ‘-10°C~ +60°C
Environmental certification: ROHS REACH-SVHC
Typical Applications
The miniature gearbox is mainly suitable for micro gear reducer motors, and the miniature gear reducer motor is mainly used for industrial product drive,Instrumentation,medical instruments,Electric household appliances,Acoustic image,office automation.
The fields of aerospace and automobile are the electromechanical products that are developing in the direction of scientific and technological intelligence automation in the development of national economy.
Typical products such as:
| Coffee machine | camera | vending machine | Money counter |
| Electronic door lock | projector | CD-ROM | hair dryer |
| electrical tools | monitor | Game machine | Electric shaver |
| Camera instrument | robot | Gas valve | Massager, etc. |
In addition, our company can also design and manufacture special miniature gear reducer motors according to customer needs.
Product Tags:
|
|

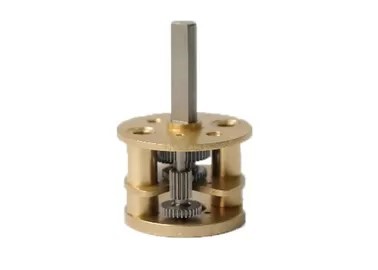

Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor Images
|
